Z Sensor: How to Pair a Display Screen With a Wireless Sensor

1. Your Z Sensor should have arrived from the factory pre-paired. Quickly hit the POWER BUTTON on the Z Screen to search for its paired sensor. If this doesn't work or the Z Sensor and Z Screen become un-paired, follow steps 2-6.

2. Hold the power button on the Z Screen until you hear two sets of beeps, then release. You may need to hold the Z Screen to your ear to hear the beeps. If you still can't hear the beeps, hold the button for about 6 seconds then release.

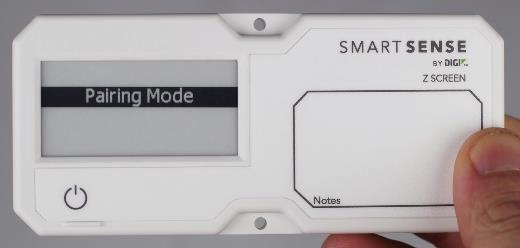

3. The Z Screen display should show a message indicating it has entered PAIRING MODE.

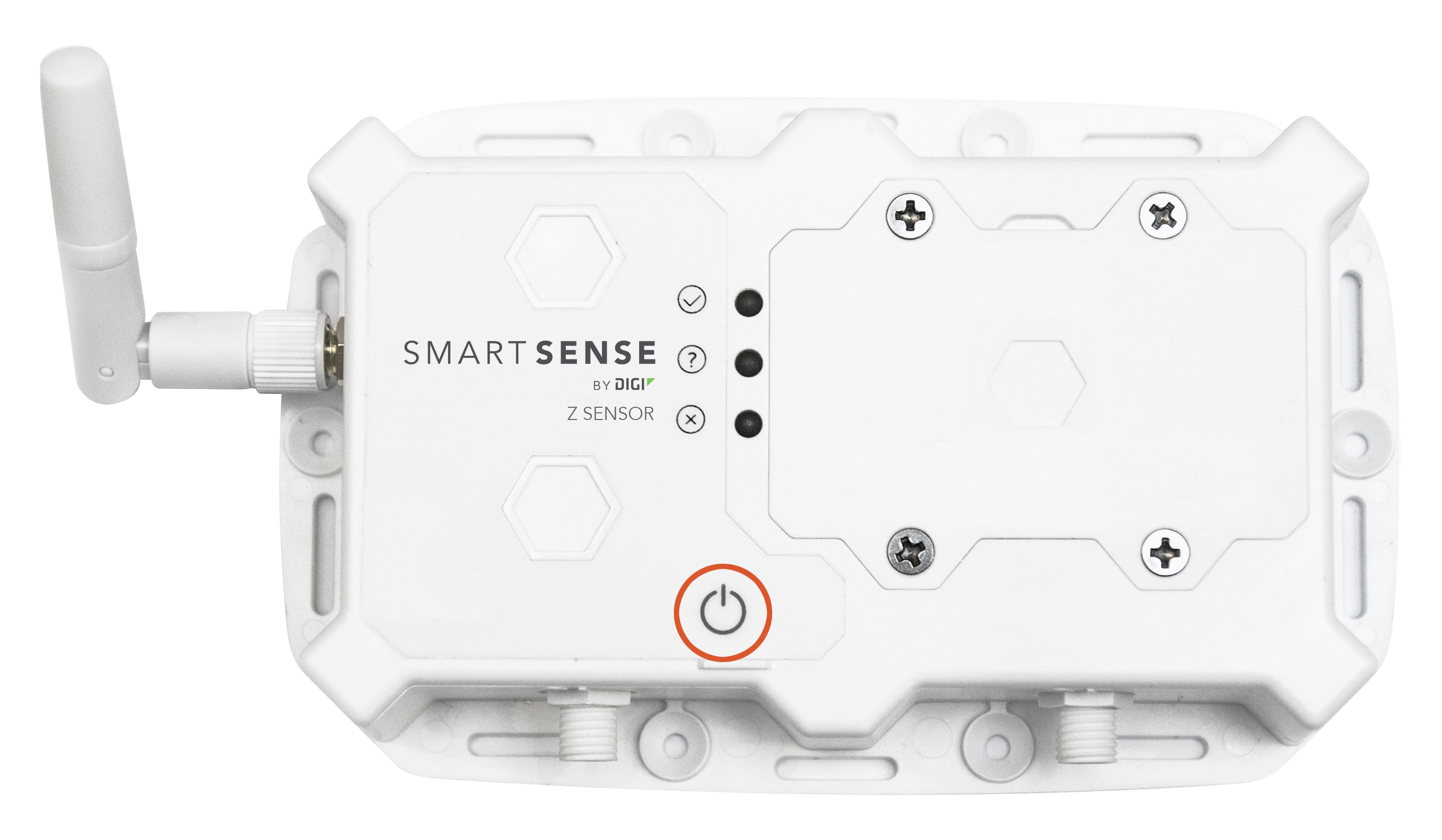

4. Quickly press and release the POWER BUTTON on the Z Sensor. The lights will turn on and off. A green light will start flashing, indicating that the sensor is searching for a connection.

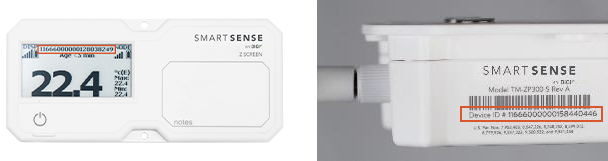

5. You'll know the Z Screen and Z Sensor are paired when the Z Screen displays the temperature. Confirm the Z Screen is paired with the correct Z Sensor by matching the 20-DIGIT ID located on the Z Screen and the side of the Z Sensor underneath the barcode.

6. You can switch from a Fahrenheit display to Celsius by holding the Z Screen power button for 3 seconds, or until you hear a beep, and let go.
